E9175 (ER16PFL)

Features
Specification

E9175 (ER16PFL)



Targeted for use in low-power, small form factor, and ruggedized systems, AMD power-efficient embedded GPUs are an excellent fit for applications including mobile and static-screen digital signage, digital casino gaming, retail and kiosks, factory human-machine interfaces, thin client computing, medical displays, and heads-up military and aerospace displays.

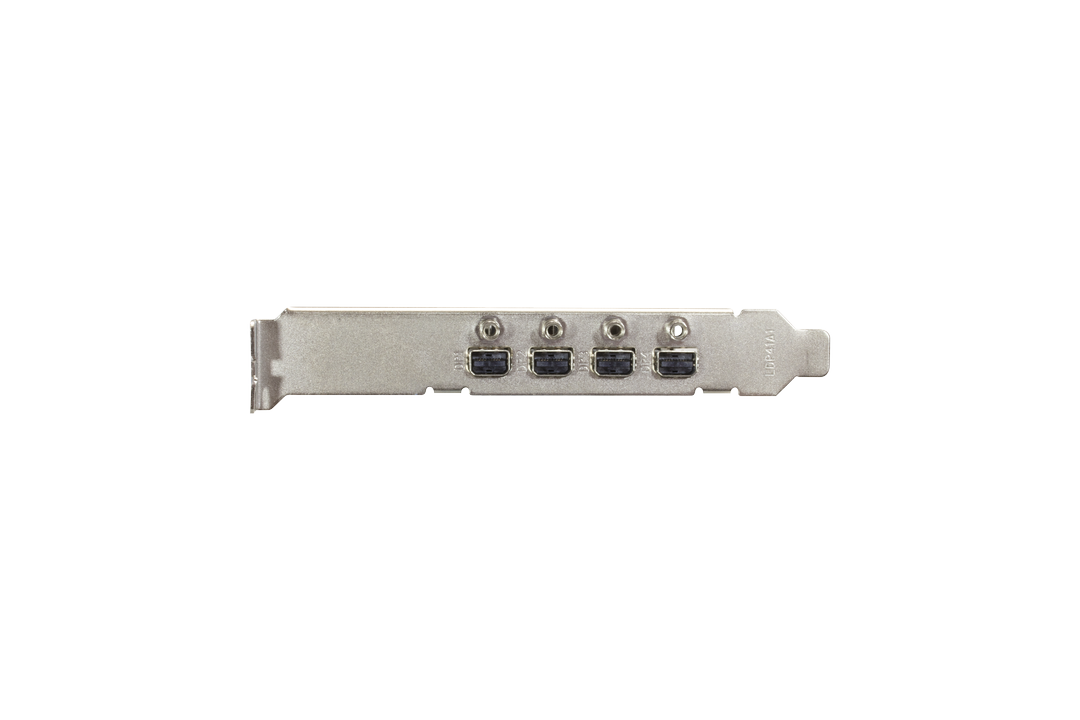

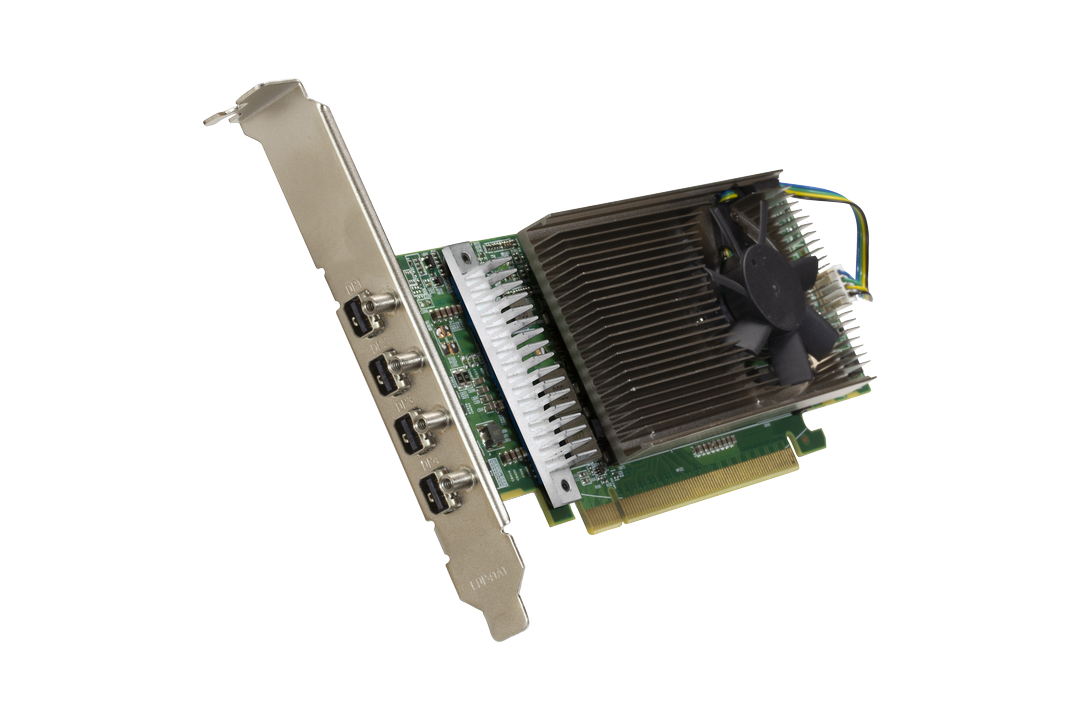

        The E9175 (ER16PFL) Graphic Card provides with 4 Mini DP outputs with cable locking, allowing system customers to implement multi-display output without additional video converters or splitters. The ER16PFL output ports are perfect for developing new system products or upgrading an existing product.





7-Year GPU Chip Supply Cycle

       The core AMD Embedded Radeon™ E9175 chips has a product supply cycle of up to 7 years. The stable lifecycle for industrial system and embedded products means that whole systems will not become obsolete prematurely due to a shortage of critical parts. This fits into the demand for long life, durability and stability from industrial and embedded products while also reducing development costs for developers.



      The AMD Embedded Radeon™ E9175 GPU delivers exceptional graphics, computing, and multiple displays to the embedded market. The AMD Embedded Radeon™ E9175 Graphic card consists of an advanced 3D graphics and multimedia engine with 4GB of high-speed GDDR5 frame buffer memory.



       The Graphics Core Next advanced 3D graphics engine supports Microsoft® DirectX® 12 and Shader Model 5.0 for superior graphics rendering. AMD's sixth generation unified video decoder (UVD) supports dual-stream high-definition (HD) decode. The integrated HD audio controller and codec supports linear PCM and 7.1 channels of compressed HD audio with digital rights management (DRM) for HDMI™ and DisplayPort outputs.



       With 512 shaders delivering 1.248 TFLOPs peak single-precision floating-point performance, the AMD Embedded Radeon™ E9175 GPU is ideal for compute intensive general purpose graphics processing (GPGPU) applications. Speed GPGPU software application development with OpenCL™ and the AMD Accelerated Parallel Processing (APP) software development kit (SDK).



       Host access to the AMD Embedded Radeon™ E9175 GPU is provided through the 8 lanes PCI Express® 3.0 interface.
