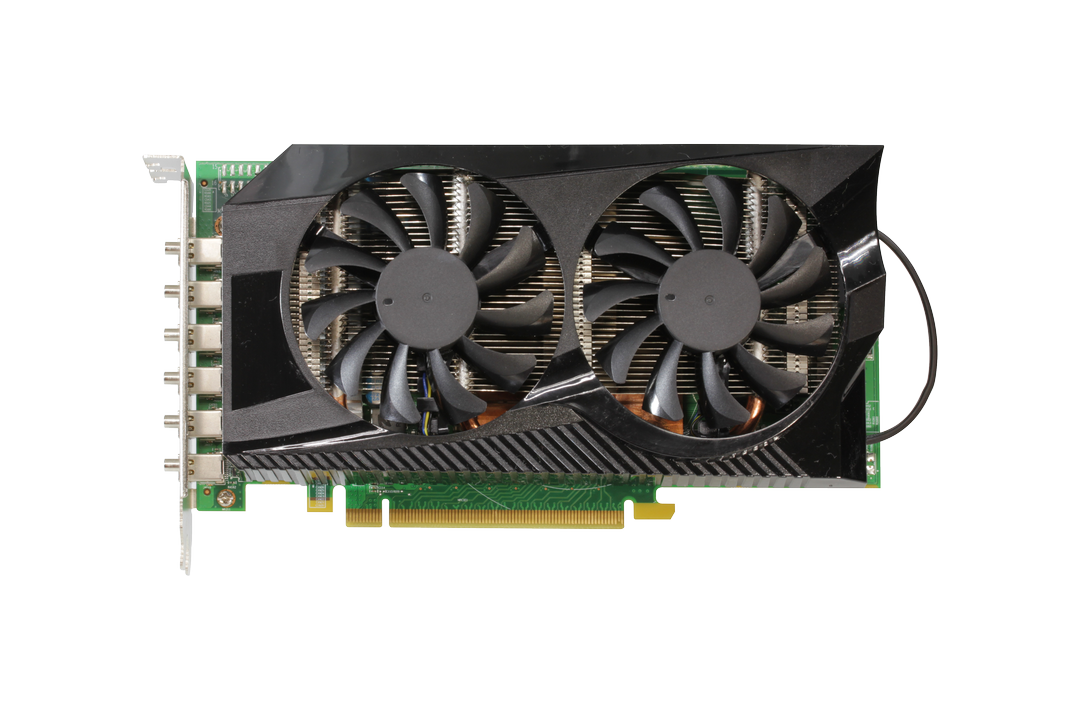

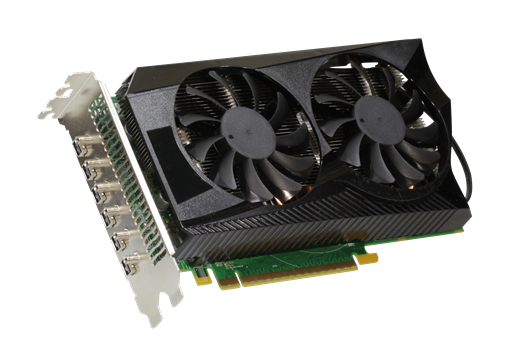

ER28FR (E8950)




        Supportsing 4K high-speed video, 3D visualization, and other compute-intensive graphics applications. Optimized for use in high-end systems spanning casino and arcade gaming, medical imaging, and conventional military and aerospace applications.

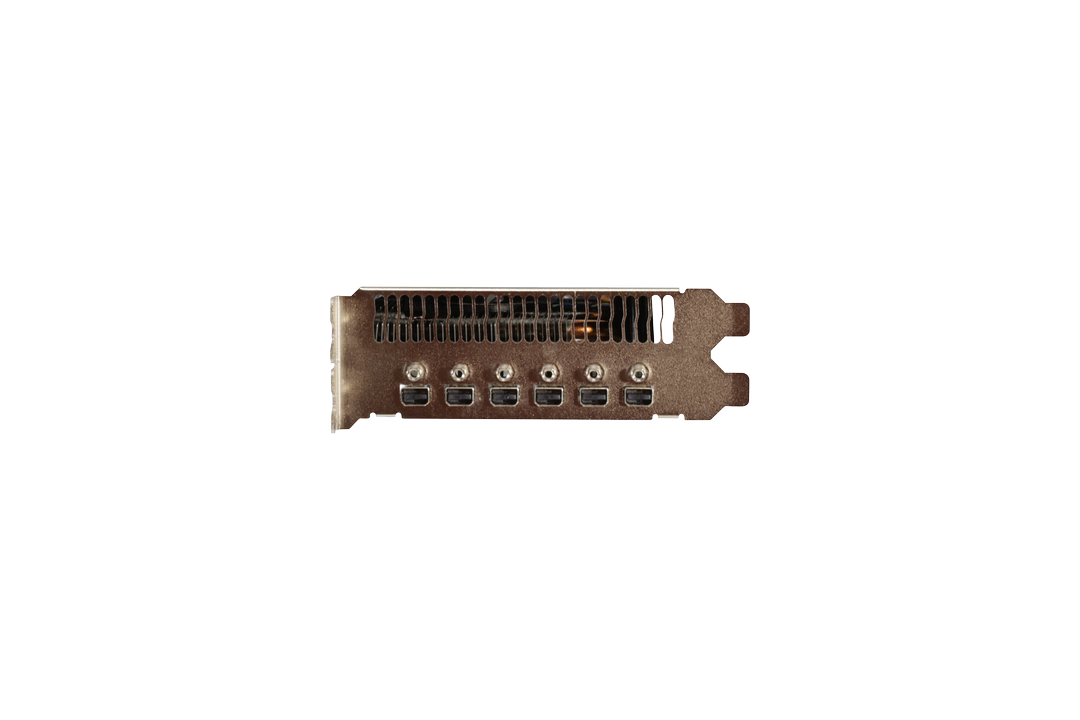

        The ER28FR Graphic Card provids 6 Mini DP outputs with cable locking, allowing system customers to implement multi-display output without additional video converters or splitters. The ER28FR output ports is perfect for developing new system products or upgrading an existing product.


3-Year GPU Chip Supply Cycle
       The core AMD Embedded Radeon™ E8950 chip has a product supply cycle of up to 3 years. The stable lifecycle for industrial system and embedded products means that whole systems will not become obsolete prematurely due to a shortage of critical parts. This fits into the demand for long life, durability and stability from industrial and embedded products while also reducing development costs for developers.


       The AMD Embedded Radeon™ E8950 GPU delivers exceptional graphics, computing, and multiple displays to the embedded market.  The AMD Embedded  Radeon™ E8950 Graphic card consists of an advanced 3D graphics and multimedia engine with 8GB of high-speed GDDR5 frame buffer memory.


       The Graphics Core Next advanced 3D graphics engine supports Microsoft® DirectX® 11.2 and Shader Model 5.0 for superior graphics rendering. AMD's fifth generation unified video decoder (UVD) supports dual-stream high-definition (HD) decode. The integrated HD audio controller and codec supports linear PCM and 7.1 channels of compressed HD audio with digital rights management (DRM) for HDMI™ and DisplayPort outputs.


       With 2048 shaders delivering 3.0 TFLOPs peak single-precision floating-point performance, the AMD Embedded Radeon™ E8950 GPU is great for compute intensive general purpose graphics processing (GPGPU) applications. Speed GPGPU software application development with OpenCL™ and the AMD Accelerated Parallel Processing (APP) software development kit (SDK).


       Host access to the AMD Embedded Radeon™ E8950 GPU is provided through the 16 lanes PCI Express® 3.0 interface.
