u  AMD Embedded R-Series SOC

u  Integrated AMD Radeon 3rd Generation GCN Graphics

u  Supports DDR4 Dual Channel up to 32GB DDR4 SDRAM

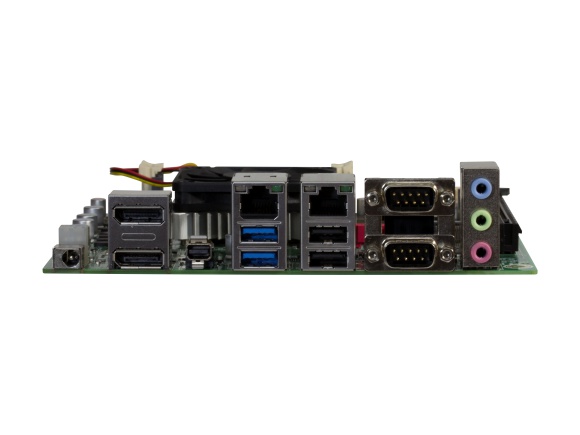

u  Support triple display of DP / DP / Mini DP

u  1 x PCIe x16 slot (Gen3 x8), 1 x Mini PCIe (with mSATA), 1 x SATA3

u  2 x USB 3.0, 6 x USB 2.0 , 2 x RS232, 2 x Gigabit LAN

u  Support TPM 2.0 with LPC


Product overview

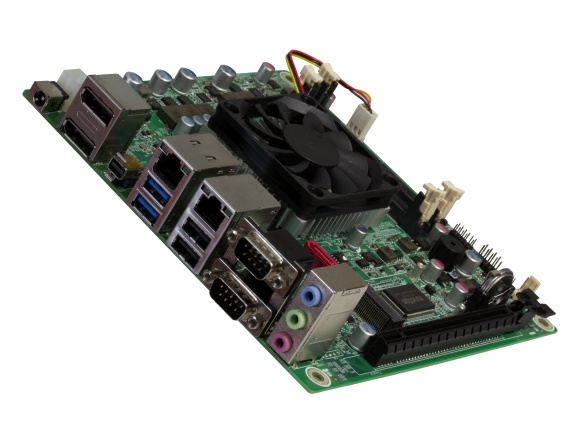

The AF400MIB Mini ITX motherboard based on AMD Embedded R-Series SoC (Codenamed “Merlin Falcon”) delivers astonishing graphics and HD multimedia processing performance, via a sophisticated SoC architecture that integrates up to four of AMD’s latest high-performance “Excavator” x86 CPU cores with the latest AMD Radeon™ graphics and an I/O controller all on a single die.



The low-cost, power-efficient design of the AMD R-series platform suits a wide range of applications.

u  Digital Gaming

u  Digital Signage

u  Media Collaboration

u  Medical Imaging
