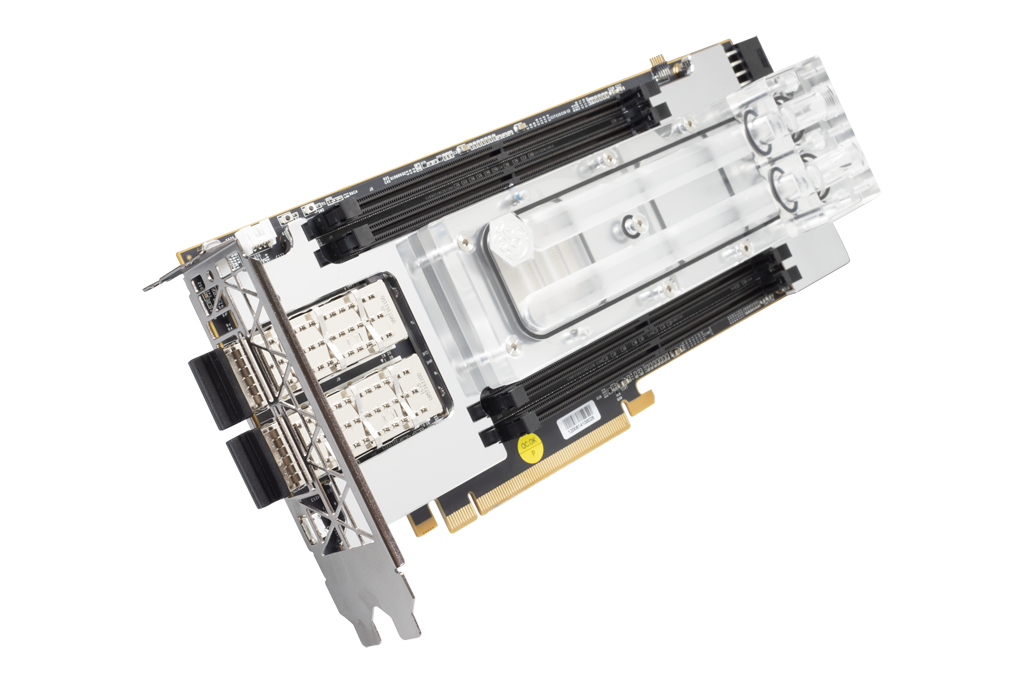

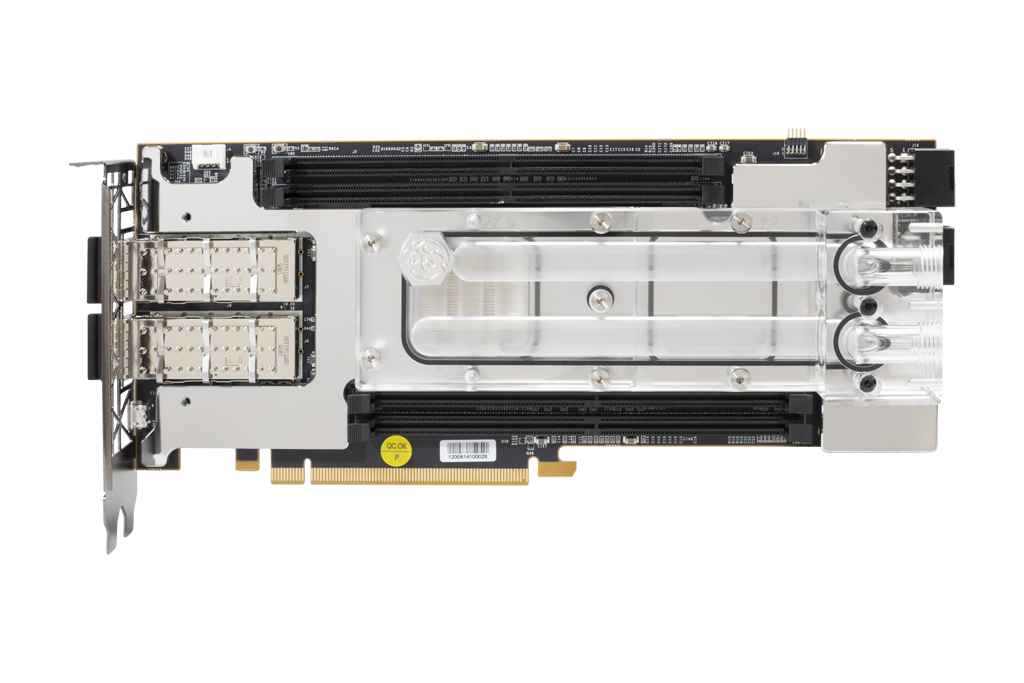

TUL BTU9P PRO, Xilinx Virtex UltraScale+ PCIe accelerator board, is designed to provide more stable platform for compute-intensive applications like machine learning, data analytics, data mining, blockchain application, and video processing.

Product Application

• Smart Network Interface Card
• Machine Learning
• 24 Channel Radar Beamformer + Pulse Compressor + Doppler Filter
• Test & Measurement Instrumentation
• 1 Tb/s OTN Switching (POTS)
• Blockchain acceleration

Product Specification

Memory
  • 4 - 16GB DDR4 DIMMs
Power & Thermal
  • Watercooling – pure copper waterblock with acrylic cover, standard G 1/4 threads
  • Passive aluminum backplate wth heatpipe
  • 2 pcs 150W AUX connectors (8pin, both need to be connected)
  • No power needed from PCIe slot
  • 350A power supply for FPGA core
Configuration
  • FPGA Configuration via JTAG thru Micro USB Port
  • QSPI Configuration flash memory
Communication & Networking
  • Two QSFP28 100G Interfaces
  • PCIe Gen3 x 8 via Edge Connector

TUL BTU9P PRO

Ordering PN

1A4-M003146000 retail package
