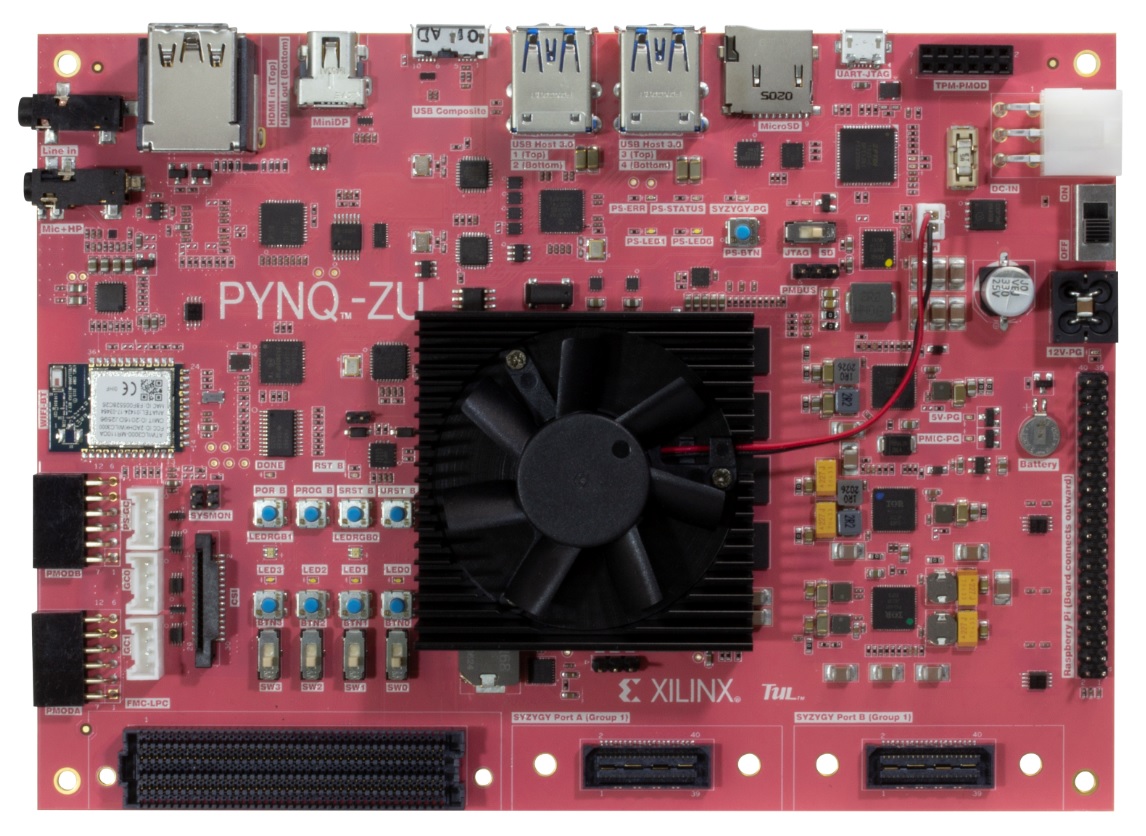

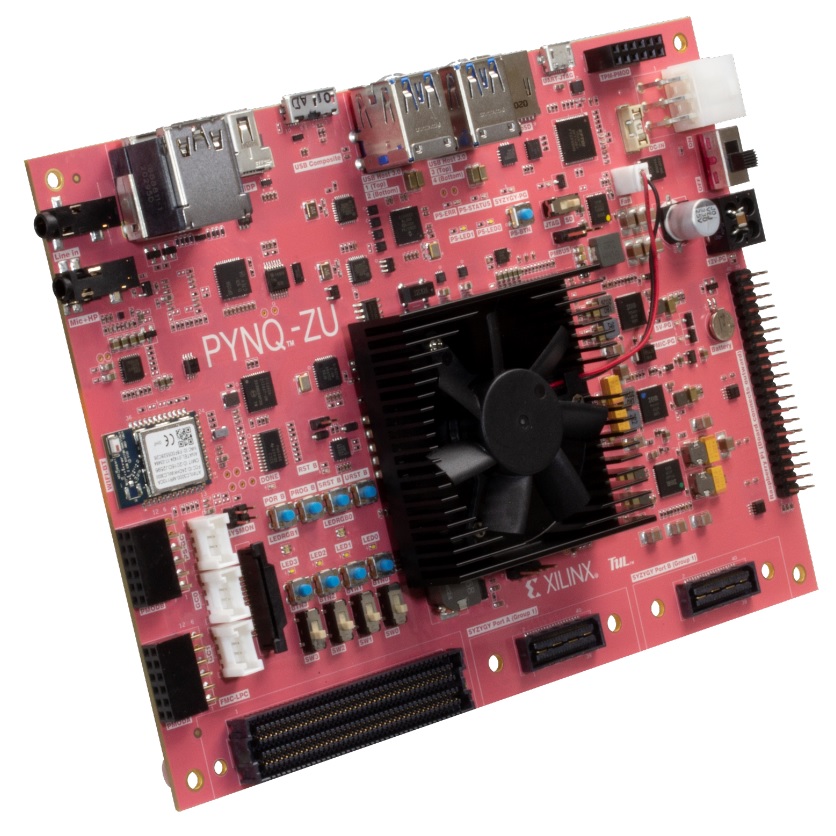

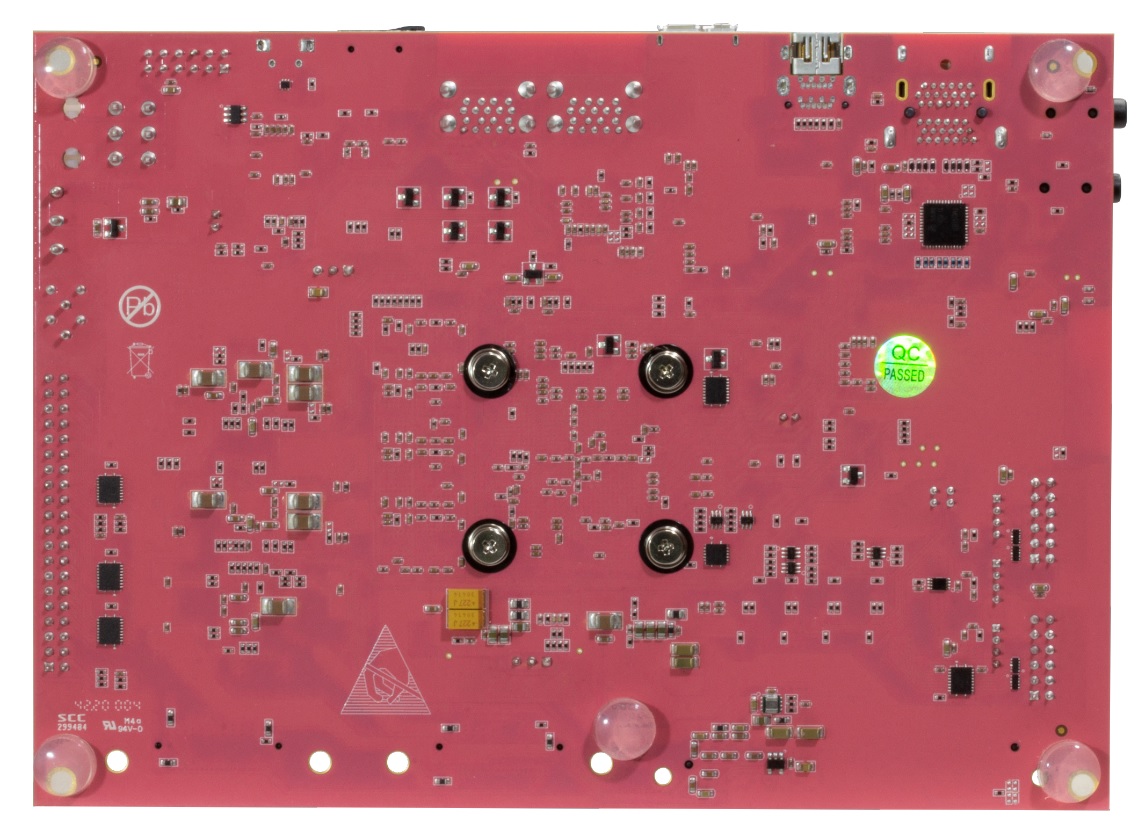

Zynq UltraScale+ XCZU5EG-1SFVC784 MPSoC • Quad core ARM Cortex-A53, Dual R5 processors • DDR4 memory controller with 8 DMA channels and 4 High Performance AXI3 Slave ports • High-bandwidth peripheral controllers: 1G Ethernet, 2x USB 3.0, DisplayPort • Low-bandwidth peripheral controllers: 2x each SPI, UART, I2C • Programmable from JTAG and MicroSD card • 256,200 system logic cells, 234,240 Flip-Flops and 117,120 LUTs • 5.1 Mb total block RAM, 18.0 Mb ultra RAM • 1,248 DSP slices • On-chip analog-to-digital converter (XADC) Memory • 4GB DDR4 2400R (64 bits wide) • MicroSD slot USB and JTAG • Micro USB-JTAG programming circuitry • Micro USB-UART bridge • USB 3.0 OTG PHY (supports host only) • USB Composite 3.0 |
Audio and Video • HDMI 2.0 sink port (input) • HDMI 2.0 source port (output) • Mini Display Port • I2S interface with 24bit DAC with 3.5mm TRRS jack • Line-in with 3.5mm jack Switches, Push-buttons and LEDs • PL • 4 push-buttons • 4 slide switches • 4 LEDs • 2 RGB LEDs • PS • 2 LEDs • 1 push-button Expansion Connectors • 2 standard Pmod ports and 1 TPM Pmod • CSI • FMC LPC • 2 SYZYGY standard ports Raspberry Pi connector • 28 Total FPGA I/O pins |
|
|
Downloads • PYNQ-ZU User Manual (PDF) • PYNQ-ZU Board File • PYNQ-ZU Master XDC |
• Zynq UltraScale+ Datasheet (PDF) • Zynq UltraScale+ Technical Reference Manual (PDF) • PYNQ-ZU Schematics (PDF) |
|
|
Ordering PYNQ-ZU board 2M1-M00009300G |
Technical Support For Technical Inquiries Regarding PYNQ-ZU technicalsupport@tul.com.tw |
 |
