The TUL FPGA PCIe Accelerator Card uses a Xilinx Field Programmable Gate Array (FPGA) as a programmable accelerator for data center applications.
The card is configured with Kintex Ultra Scale KU115 which supports 40Gb Ethernet operation over 2 QSFP28 connectors.

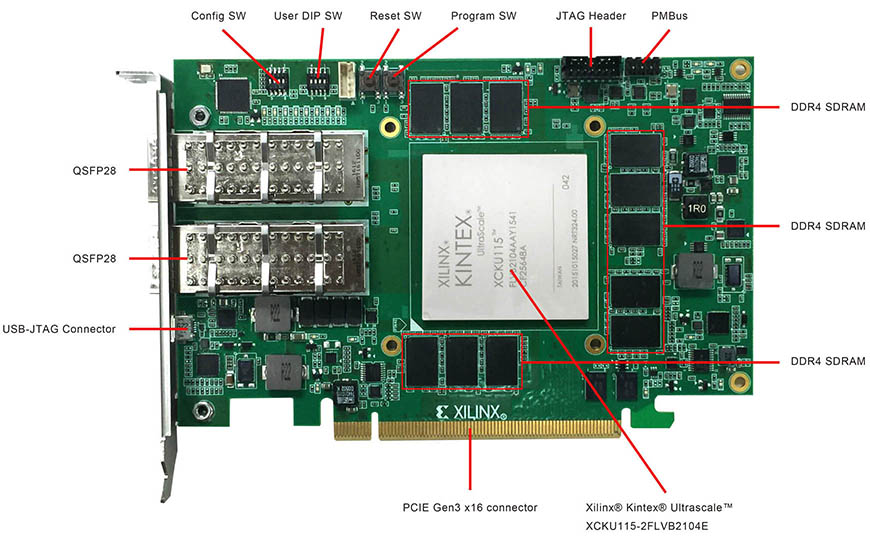

Product Specification

• PCIe Compliant in a Half-Length, Full-Height form factor
• PCIe Gen3 x16 with bifurcation to dual x8 links or single x8 link without bifurcation
• Xilinx® Kintex® Ultrascale™ XCKU115-2FLVB2104E
• Four (4) DDR4 Interfaces (soldered down devices) - three (3) 72bit and one (1) 64bit capable of operating to 2400MT/s
• On-board re-programmable flash memory for configuration
• Two (2) 40Gb Ethernet ports with QSFP28 connector
• JTAG (micro USB) port for programming

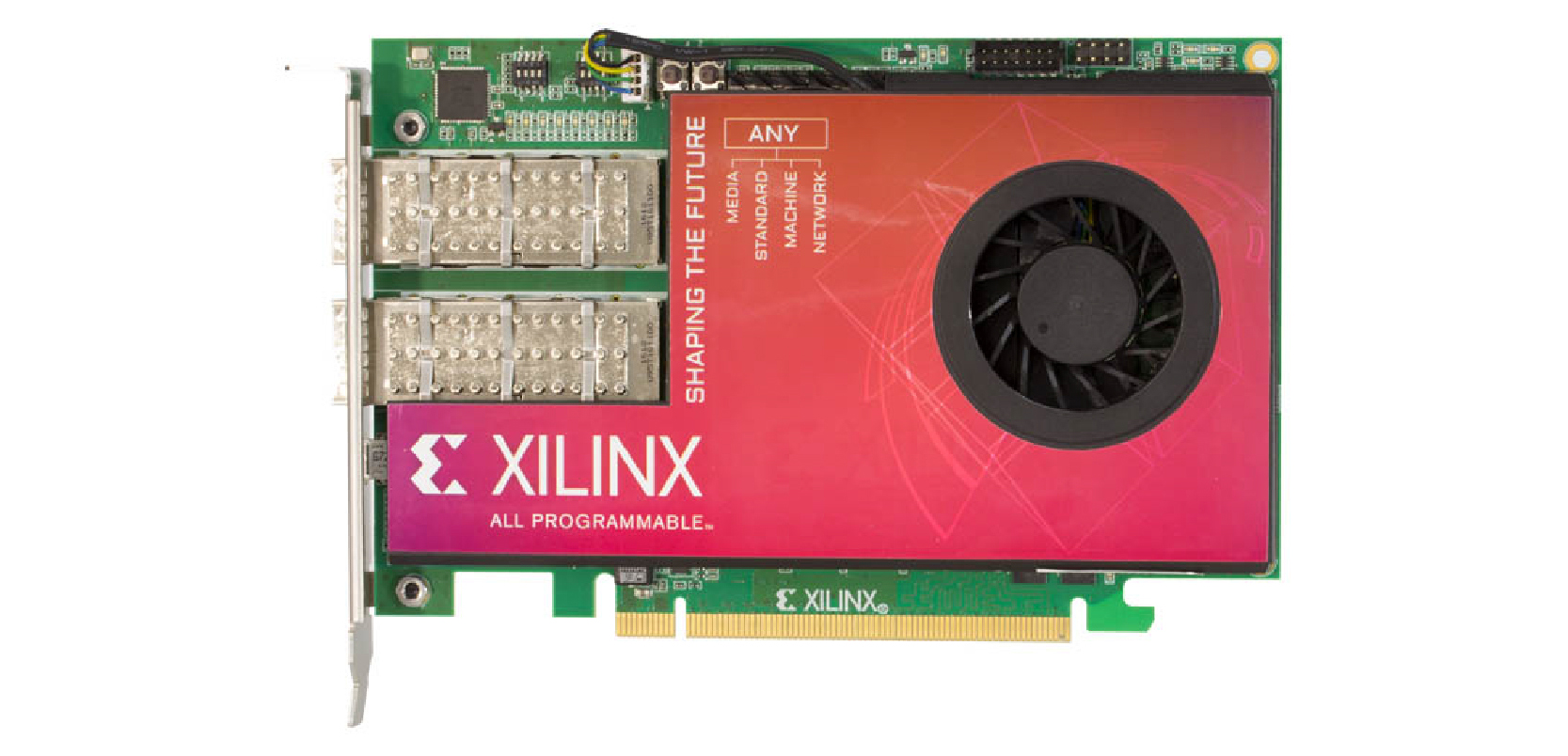

• Variable cooling fan operation for optimal ambient noise performance or passive heat sink
• On-board power telemetry via PMBus

TUL PCIE KU115

Application

• Video Processing
• Machine Learning
• High Performance Computing
• Network Acceleration

Downloads

The PCIE KU115 Introduction (PDF)

Ordering PN

1A1-M000923DEV retail package
