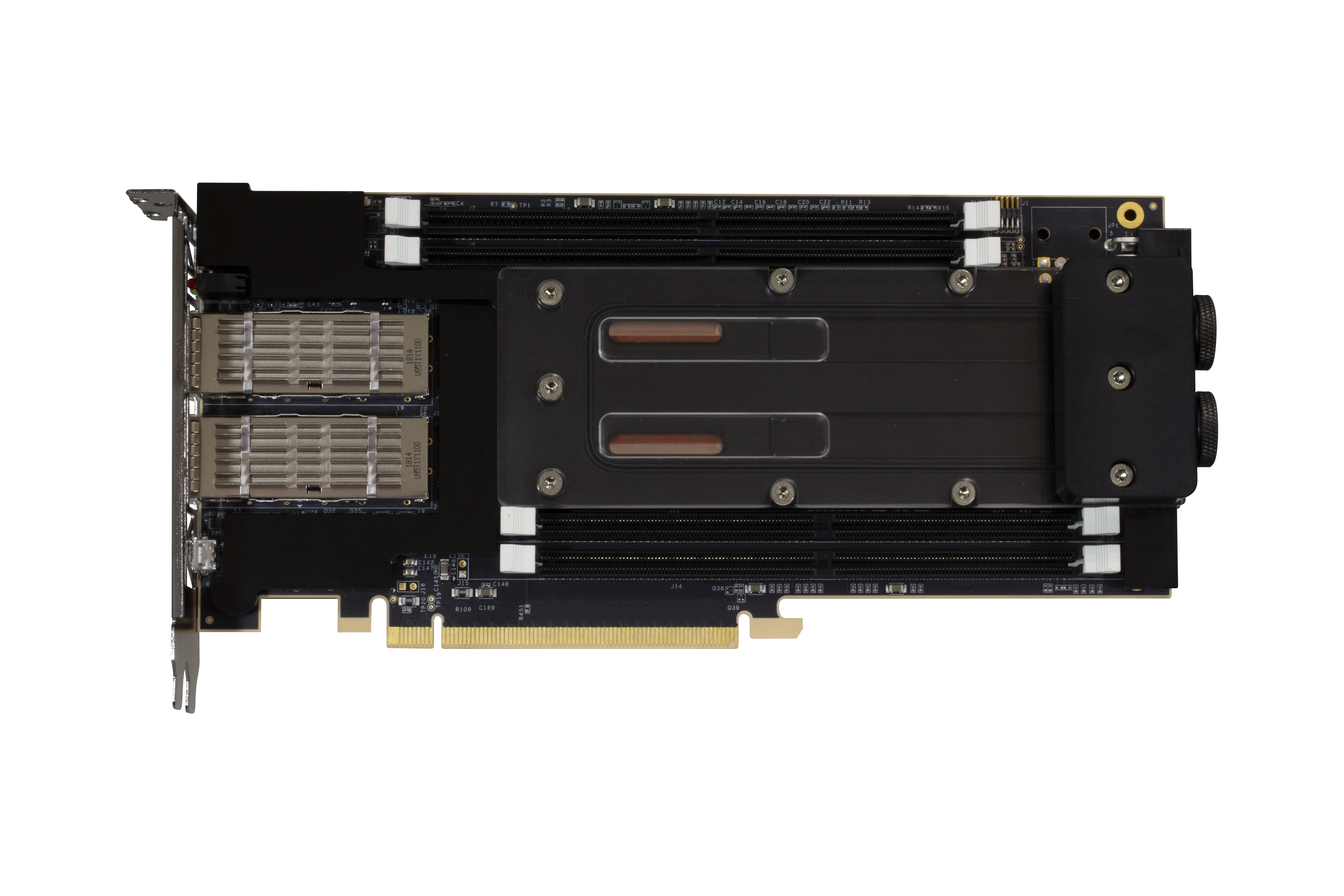

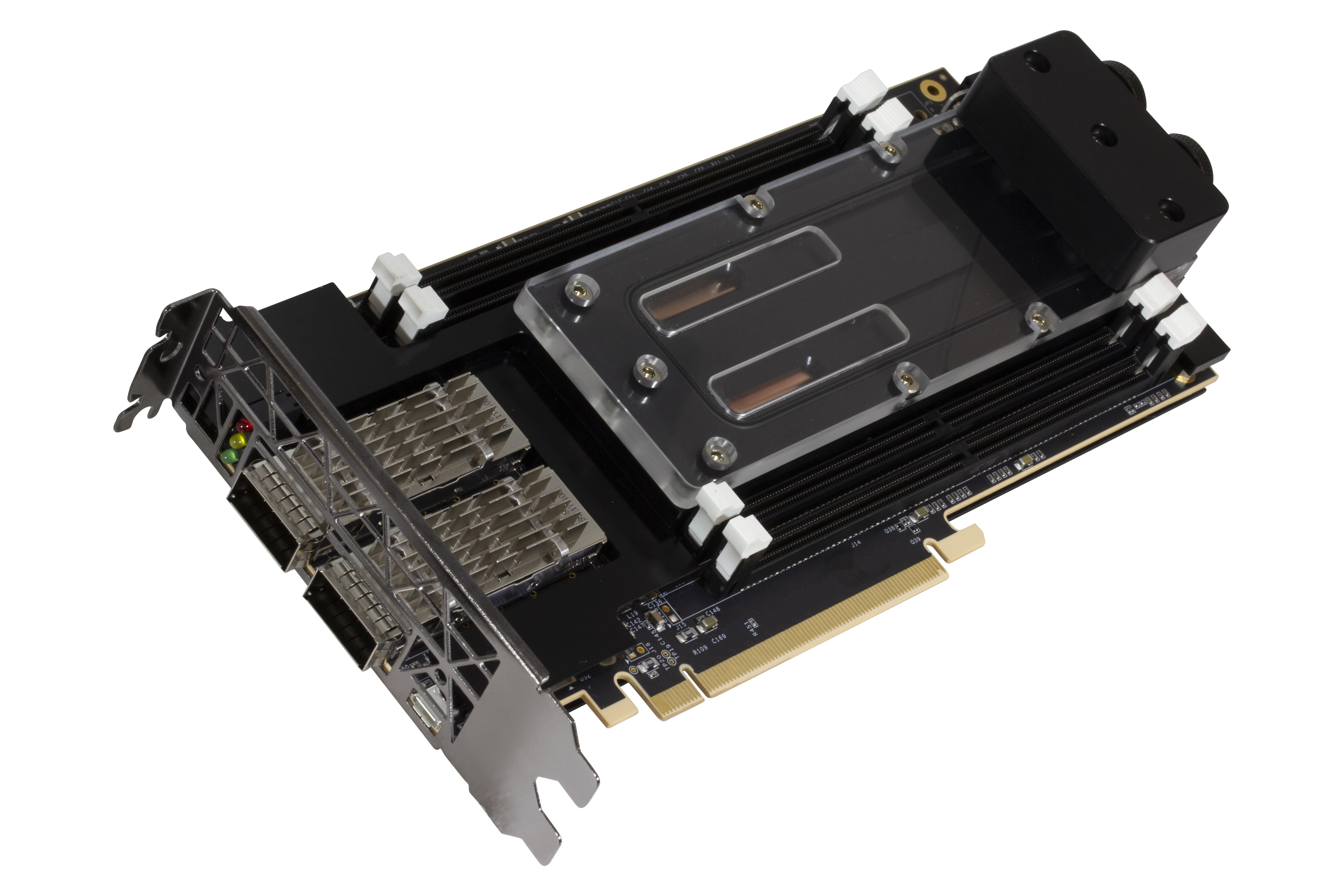

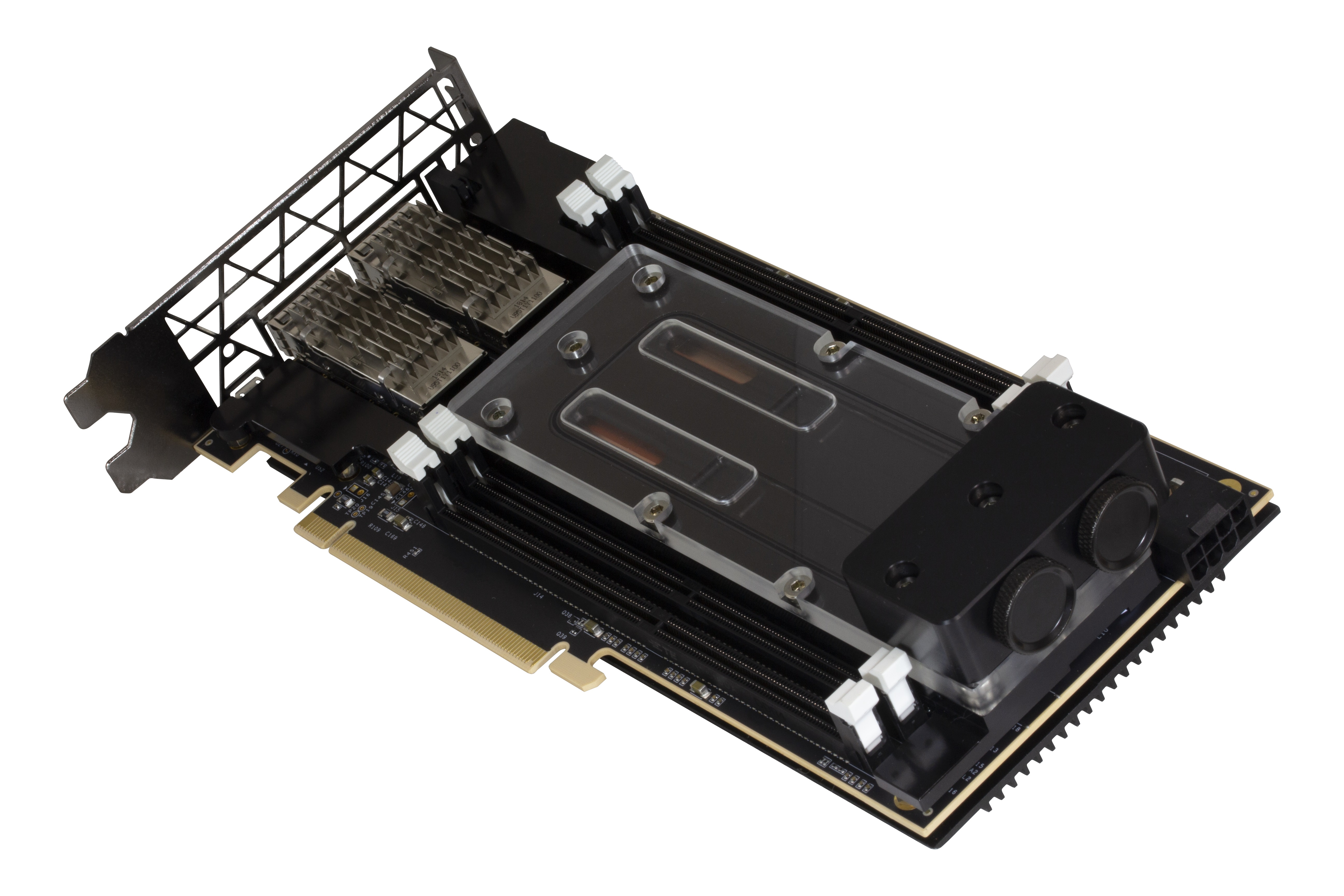

TUL BTU9P, Xilinx Virtex UltraScale+ PCIe accelerator board, is designed to accelerate compute-intensive applications like machine learning, data analytics, data mining, blockchain application, and video processing.

Product Application

• Smart Network Interface Card
• Machine Learning
• 24 Channel Radar Beamformer + Pulse Compressor + Doppler Filter
• Test & Measurement Instrumentation
• 2x100G MAC to Interlaken Bridge
• 1 Tb/s OTN Switching (POTS)
• 800G Data Center Interconnect
• Blockchain acceleration

Product Specification

Memory
  • 4 - 16GB DDR4 DIMMs
Power & Thermal
  • Active Cooling
  • 225W Max Dynamic Power Sourcing
  • Up to 75W max from PCIe Edge Connector
  • Additional 150 W max supplied from PCIe Aux Power Connector
Configuration
  • FPGA Configuration via JTAG thru Micro USB Port
  • QSPI Configuration flash memory
Communication & Networking
  • Two QSFP28 100G Interfaces
  • PCIe Gen3 x 8 via Edge Connector

TUL BTU9P

Ordering PN

1A4-M003091001 retail package
